產品名稱：
2SNTG扣壓套筒
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 軟 管 | 尺 寸 | ||||

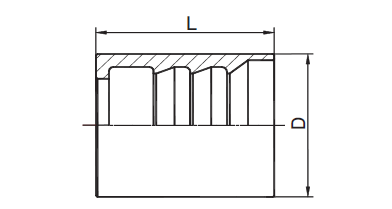

| 公稱內徑 | 標號 | L | D | |||
| 2SN03TG | 5 | 3 | 28 | 18.5 | ||
| 2SN04TG | 6 | 4 | 30 | 21.5 | ||
| 2SN05TG | 8 | 5 | 32 | 23 | ||
| 2SN06TG | 10 | 6 | 32 | 25 | ||
| 2SN08TG | 12 | 8 | 34 | 31 | ||
| 2SN10TG | 16 | 10 | 39 | 34 | ||
| 2SN12TG | 19 | 12 | 43 | 37 | ||
| 2SN16TG | 25 | 16 | 50 | 43 | ||
| 2SN20TG | 32 | 20 | 59 | 51 | ||
| 2SN24TG | 40 | 24 | 74 | 57 | ||
| 2SN32TG | 50 | 32 | 78 | 70 | ||
*適用國標二層鋼絲編織橡膠管
